A Glossary of Windmill Terms
A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | R | S | T | U | V | W | Y
- BEDSTONE
- the lower of a pair of millstones, which remains stationary
- BINS [ picture ]
- Wooden boxes for holding the grain
- BIN FLOOR
- Floor of mill where the grain bins are situated
- BRAKE
- wooden or iron brake shoe encircling the brake wheel
- BRAKE WHEEL [ picture ]
- the largest geer wheel, fixed on the windshaft. The brake contracts onto its wooden rim
- BRAN
- partly ground husk of grain
- BREAST
- front of a post mill
- BRIDGE [ picture ]
Runner stone at Spilsby Windmill, Lincs
- metal bar cemented into eye of runner stone to act as bearing for the top of the
spindle
- BUCK
- The body of a post mill
- CANISTER
- see Poll End
- CANT POSTS
- corner posts of a mill
- CAP
- The revolving top of a tower or smock mill
- CENTRE or MAIN POST [ picture ]
Remains of Smarden post mill
- The large central post which supports a post mill
- CHAIN WHEEL [ picture ]
- wheel turned by means of an endless chain. For winding the mill or for working striking gear.
- CILL
- low stone or brick wall
- COGS [ picture ]
wooden cogs on the great spur wheel
- the wooden teeth (usually Applewood or hornbeam) inserted into cast gear wheel to drive mill machinery
- COMMON SAILS
- sails with a wooden framework covered by canvas.
- COMPOSITION STONE
- millstone made from cement and carborundum
- CURB
[ picture ]
Curb exposed during 2002-3 renovations
- circular track at the top of the tower or smock mill on which the cap turns.
DEAD CURB slips on pads of metal
LIVE CURB carries cap on rollers
- CROSS
- multi-armed iron casting fixed to the end of the windshaft to carry the sails
- CROSSTREES
- horizontal timbers at right angles which support the centre post of a post mill
- EYE [ picture ]
Runner stone at Spilsby Windmill, Lincs
- hole in the centre of the runner stone through which grain passes into the middle of the two stones.
- FANTAIL [ picture ]
- fan at rear of cap which automatically turns it to face the wind.
- FAN STAGING
- platform at the rear of the cap of a smock or tower mill to provide access to the fantail
- FEED SHOE
- guides grain from hopper into eye of stone.
- FLOUR DRESSER [ picture ]
- machine for separating (white) flour from the rest of the meal.
- FRENCH BURR
- freshwater quartz stone from France used to mill wheat
- FURROWS
- low part of pattern on the surface of millstones.
- GALLERY
- a platform around cap
- GOVERNORS [ picture ]
The governors are painted red
- part of the tentering gear, which adjusts the distance between the stones as the sails turn faster or slower.
- GREAT SPUR WHEEL [ picture ]
- large gear wheel on the upright shaft driving the stone nuts
- LANDS
- high parts of pattern on the surfaces of millstones.
- LUFFING
- see winding
- MIDDLINGS
- heavy timbers to which the sails are fitted - also called stocks
- OVERDRIFT
- stones driven from above
- PATENT SAILS
- shuttered sails with self-regulating control gear to automatically adjust their speed
- PEAK STONE [ picture ]
- millstone grit from the Peak District of Derbyshire used for grinding
animal feeds
- PETTICOAT
- downward extension of the cap to cover the top of the tower against the weather
- PIERS
- brick supports of a trestle.
- POLL END [ picture ]
- cast iron socket at end of windshaft to hold the stocks
- POST MILL
- Mill in which the whole body is supported on and turns around a central post
- QUANT [ picture ]
- four-sided shaft from stone nut to mace on overdriven stones.
- REEFING STAGE
- see staging
- ROLLER MILL
- mill using metal rollers in place of stones
- ROUNDHOUSE [ picture ]
Rolvenden Mill
- building around the trestle of a post mill to protect it and provide storage.
- RUNNER STONE
- top stone of a pair which is turned by the mill.
- SHUTTERS [ picture ]
- a series of hinged vanes in vertical rows in spring and patent sails
- SMOCK MILL
- Mill with wooden tower, often on a stone or brick base, with a revolving cap.
- SPIDER [ picture ]
- metal coupling operating the shutters of Patent sails
- SPRING SAILS
- sails with shutters linked to a spring, the tension of which can be set manually so that the shutters will open and close according to wind strength.
- STAGING [ picture ]
- a platform around the body of the mill
- STOCKS
- heavy timbers to which the sails are fitted - also called middlings
- STONE DRESSER [ picture ]
Henry Hicks dressing a stone
- a man whose profession it is to re-sharpen or dress millstones
- STONE FLOOR
- the floor of the mill where the millstones are situated

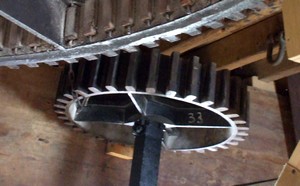

- STONE NUT [ picture ]
- final gear at top of quant which drives the stones
-
- STRIKING GEAR
- mechanism to open and close the shutters on the sails
- SWEEPS
- term used in southeast of England to describe the sails
- TAIL
- rear end of a post mill
- TAIL POLE [ picture ]
Rolvenden Mill
- long timber at the rear of a post mill or cap used to turn it manually
- TAIL WHEEL
- wheel mounted at rear of windshaft to drive a second set of stones
- TAIL WINDING
- when a wind catches the sails from the rear; a strong tail wind has been known to blow the cap off the tower
- TALTHUR
- small beam attached to tailpole of a post mill which when hooked to the ladder will lift it clear of the ground while the mill is being winded.
- TENTERING GEAR [ picture ]
- device to make fine adjustments to the gap between the millstones to compensate for temporary fluctuations in windspeed
- TOWER MILL
- Mill with a brick tower and revolving cap
- TRESTLE [ picture ]
Remains of Smarden post mill
- wooden substructure of a post mill supporting the main post.
- TUN CASE
- see VAT
- UNDERDRIFT
- stones driven from beneath
- VANES [ picture ]
- blades of a fantail.
- VAT [ picture ]
Vat containing French burr stones at Union Mill
- removable wooden case enclosing millstones.
- WALLOWER [ picture ]
Steel wallower with wooden friction drive for sack hoist
- horizontal gearwheel at top of upright shaft taking drive directly from the brake wheel
- WHIP
- the backbone of a sail or sweep
- WINDBOARD
- wide board replacing the shutters on inner half of leading edge of sails
- WINDING
- process of turning sails into the eye of the wind
- WINDSHAFT [ picture ]
- main axle of iron or wood that carries the sails and brake wheel
- Y-WHEEL
- wheel with metal Ys around circumference to increase grip of chain.
|
